Raspberry Pi 4B Guix System Network Boot

Guix is a GNU Project, and as such, it is built with the Linux-libre, a variant of the Linux kernel free from all proprietary binary blobs. Due to this, certain devices will not work with it (e.g. a Raspberry Pi using a broadcom chip-set).

The nonguix channel provides packages that are unavailable in official channels due to their conflicting values. This channel can be used to build non-free Guix systems (hence nonguix). Discussion of nonguix is prohibited in official guix correspondence. Consider this post anathema.

Firmware files for the various Raspberry Pi models can be found in this repository. Had a microSD card been an option to me at the time, I would have made use of this blob-free firmware distribution, or u-boot. In my case, any free space I could spare took priority.

The kernel is built from the downstream kernel source provided by the Raspberry Pi foundation. This variant of the kernel is heavily patched to make it work with all of the devices on-board the Raspberry Pi. That of course means proprietary binary blobs are a part of the picture.

(define-public linux-raspberrypi
  (package
    (inherit linux)
    (name "linux-raspberrypi")
    (version "6.18.y")
    (source
     (origin
       (method git-fetch)
       (uri (git-reference
             (url "https://github.com/raspberrypi/linux")
             (commit "f3ee12aca79d77b3e6708b85ca04bb1deb1f973b")))
       (file-name (git-file-name name version))
       (sha256
        (base32 "0maqwwr2ndm4d1wxmm8k0qx5xrgprggxkfz107f83iw1m03xcg4s"))))
    (synopsis "Official Raspberry Pi Linux Kernel")
    (description "Downstream kernel built by the Raspberry Pi foundation.")))

Since the environment is very particular, the kernel is built with some additional configuration:

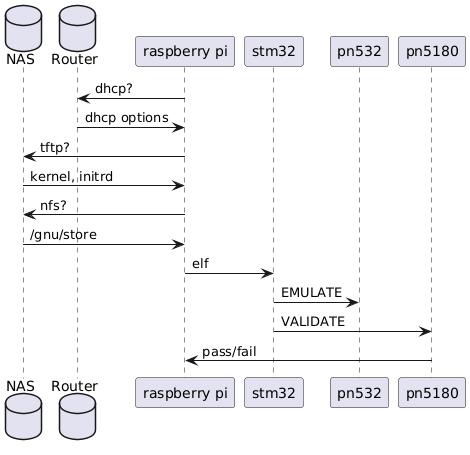

• The Pis relied on DHCP for their ip, hostname, and tftp server location (CONFIG_PI_PNP, CONFIG_IP_PNP_DHCP)
• The Pi kernel needs the ability to attach an NFS mount to itself. I allowed multiple versions of NFS simply because I didn't want to fight with permission issues. (CONFIG_NFS_V*)
• Since the NFS root is read-only, the kernel needs the ability to store state in an overlay (CONFIG_OVERLAY_FS)
• In the near future M.2 SATA SSDs attached via USB3.0 would be made available (CONFIG_USB*, CONFIG_BLK_DEV_SD, CONFIG_SCSI).

(define-public linux-raspberrypi-net
  (customize-linux
   #:name "linux-raspberrypi-net"
   #:linux linux-raspberrypi
   #:defconfig "bcm2711_defconfig"
   #:configs
   '("CONFIG_IP_PNP=y"
     "CONFIG_IP_PNP_DHCP=y"
     "CONFIG_ROOT_NFS=y"
     "CONFIG_NFS_FS=y"
     "CONFIG_NFS_V3=y"
     "CONFIG_NFS_V4=y"
     "CONFIG_NFS_V4_1=y"
     "CONFIG_NFS_V4_2=y"
     "CONFIG_OVERLAY_FS=y"
     "CONFIG_USB_UAS=y"
     "CONFIG_USB_STORAGE=y"
     "CONFIG_BLK_DEV_SD=y"
     "CONFIG_SCSI=y"
     "CONFIG_USB_XHCI_HCD=y"
     "CONFIG_USB_XHCI_PCI=y"
     "CONFIG_USB_XHCI_PLATFORM=y")))
...
    (kernel-arguments
     '("earlycon=pl011,0xfe201000"
       "console=ttyAMA0,115200"
       "loglevel=7"
       "ip=dhcp"
       "genet.force_reneg=y"
       "modprobe.blacklist=brcmfmac,brcmutil"
       "ro"
       "rootwait"
       "--"
       "--volatile-root"))

The earlycon parameter is telling the kernel which serial driver to use, and where it's address in memory resides. The genet.force_reneg=y tells the Broadcom GENET ethernet driver to renegotiate it's connection, which was added after I found that the Pi struggled to stay on the network after switching from the firmware to the kernel. Bluetooth is disabled simply because other peripherals were occupying the GPIO pins affected by those drivers.

Here is a snippet of the configuration from the storage server. The Pi mounts /storage as /mnt is configured with fsid=0.

(service nfs-service-type
         (nfs-configuration
          (idmap-domain "localdomain")
          (nfs-versions '("4.2" "4.1" "4.0" "3"))
          (nfsd-udp? #t)
          (exports
           '(("/mnt" "192.168.0.0/16(rw,insecure,sync,no_subtree_check,crossmnt,fsid=0)")
             ...
             ("/mnt/storage" "192.168.0.0/16(ro,insecure,sync,no_subtree_check,no_root_squash)")))))

Since the guix system built on the NAS was stored at /mnt/storage, when a Pi mounted this directory as it's root (/), the /gnu/store became available. I'm included extra information here to help the Pi easily find and connect to the NAS, but in better network conditions the extra options aren't needed.

(file-systems
 (list (file-system
        (mount-point "/")
        (device "192.168.3.2:/storage")
        (type "nfs")
        (options "vers=4.2,ro,tcp,hard,nolock,timeo=600,retrans=5,nconnect=4,addr=192.168.3.2")
        (check? #f))

        %pseudo-terminal-file-system
            %immutable-store))

All of the Pis were attached via UART to a waveshare device that makes them accessible via a serial connection. This agetty configuration ensures the service presents the same kind of connection that was originally passed to the kernel.

(modify-services %base-services
                 (delete static-networking-service-type)
                 (agetty-service-type
                  config =>
                  (agetty-configuration
                   (inherit config)
                   (tty "ttyAMA0")
                   (baud-rate "115200")
                   (term "vt100")
                   (flow-control? #t)
                   (extra-options '("-L")))))))

A copy of the full configuration can be found here.
